Three rotary guards can look interchangeable when they are lying on a counter, but the cutter beneath each guard has worn against that particular surface during use. Philips identifies each cutter and guard as a matching set. Mixing those pairs during a deep clean can lead to noise or reduced performance even when every part has been reassembled in the correct general shape.
This guide explains how to clean Philips and Philips Norelco rotary shaving heads without losing the cutter-and-guard pairing, and why the full shaver manual remains essential. Retaining rings, frames and holder designs vary by generation.
Routine Rinsing and Deep Cleaning Are Different
Routine cleaning removes loose hair from the assembled head holder and hair chamber. Depending on the model, that may involve opening or removing the holder and rinsing it under running water. Deep cleaning goes further by taking individual cutters out of their guards.
Do not disassemble the rotary heads every time unless the manual calls for it. Begin with the least invasive procedure that removes the residue. Disconnect the shaver from its charging cable and make sure it is switched off before removing parts.
Protect the Cutter-and-Guard Pairing

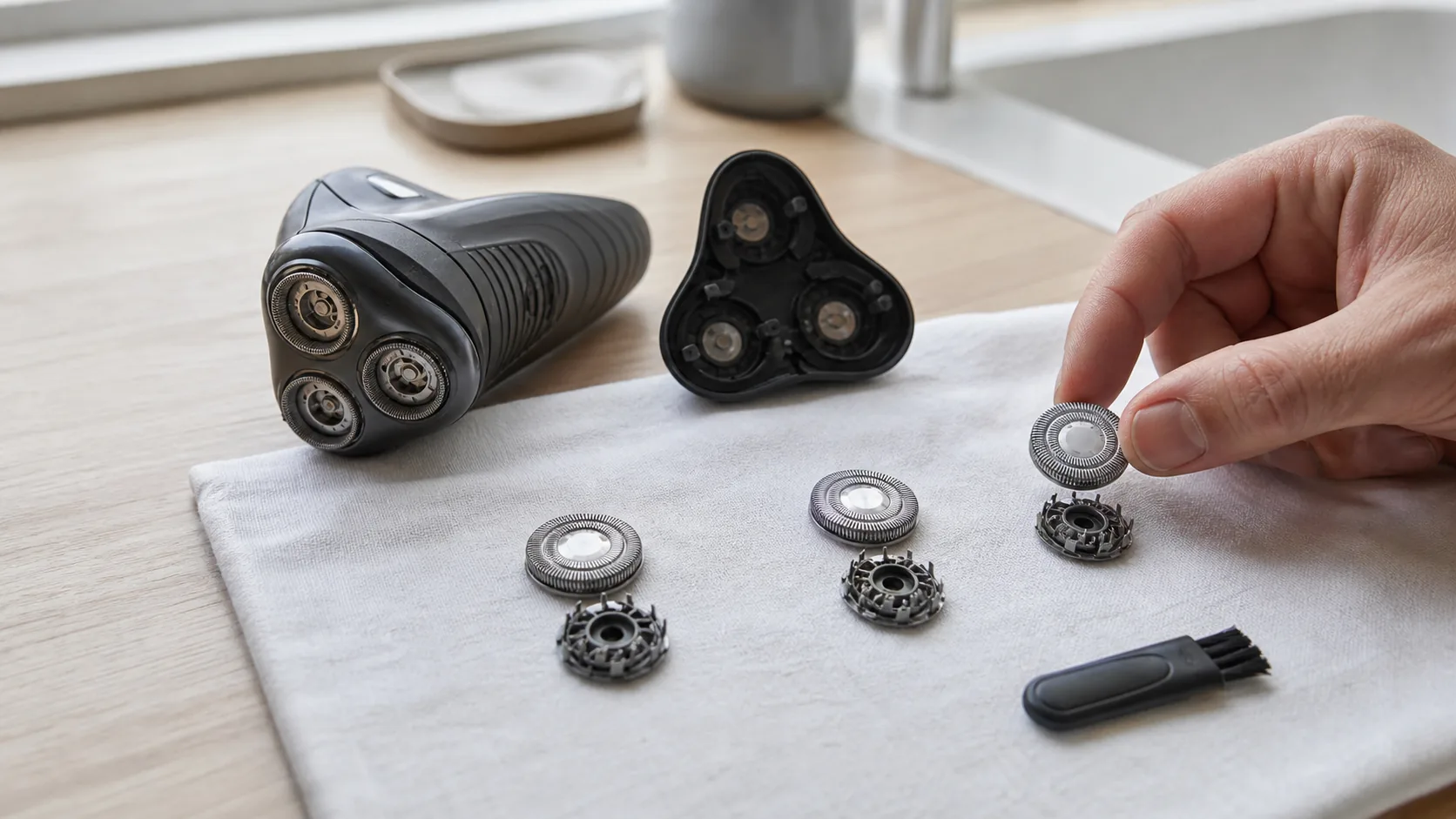

The most important rule is simple: remove and clean only one rotary head at a time. A rotary head consists of an outer guard and the cutter that rotates inside it. Keep that cutter beside its original guard throughout the process.
Philips support warns that each pair is unique after use. If cutters and guards are mixed, it can take weeks before normal shaving performance returns as the mismatched surfaces wear together again. On a three-head shaver, use three separate small trays or work from left to right, fully reassembling one position before opening the next.
Before Disassembly
1. Find the complete handle model on the shaver. 2. Open the official manual or support instructions for that model. 3. Photograph the assembled holder and ring orientation. 4. Work over a clear surface with the sink drain closed. 5. Prepare separate spaces for each cutter-and-guard pair.
Some shavers use individual retaining rings; others use a retaining frame or bracket. Do not copy a video for a different mechanism merely because both shavers have three circular heads.
Cleaning a Retaining-Ring System
Philips' general support sequence for compatible ring-style holders is:
1. Remove the shaving-head holder from the shaving unit as directed. 2. Turn each retaining ring counterclockwise to unlock it. 3. Lift out one shaving head. 4. Separate its cutter from its guard without opening another pair. 5. Rinse the cutter with warm water. 6. Rinse the guard with warm water. 7. Return that cutter to its original guard. 8. Place the completed pair back in the holder. 9. Refit the retaining ring and turn it clockwise to lock.
Repeat the sequence for the remaining heads. Make sure the small ring projections and alignment marks face the direction shown in the model instructions.
Cleaning a Retaining-Frame System
For compatible holders with a frame or bracket, the principle is the same even though the lock looks different:
1. Remove the head holder. 2. Unlock and lift the retaining frame. 3. Remove one cutter-and-guard pair. 4. Rinse both components with warm water. 5. Reassemble that pair before moving to the next one. 6. Return all pairs to the holder in the correct orientation. 7. Refit and lock the frame.
If the frame does not close naturally, do not force the dial. One head may be upside down or not seated in its locating recess.
Drying and Reassembly
Shake off excess water without striking the parts against the sink. Let the cleaned components air-dry before the next shave. Avoid towels and tissues on cutting edges because fibers can snag and pressure can damage delicate surfaces.
Once dry, check that every cutter sits inside its matching guard, every guard lies flat and each ring or frame is fully locked. Reattach the holder to the shaver. A new rattling sound after cleaning often points to incorrect assembly rather than a motor failure.
What Not to Use
Avoid scouring pads, abrasive powders, petrol, acetone and aggressive household liquids. Do not scrape residue from a guard slot with a metal tool. A clean soft brush may be suitable for specified dry areas, but the correct water and brush procedure varies by model.
Never press on a guard to flatten it. A bent or damaged guard should be replaced with the head family specified for the exact handle.
If You Accidentally Mixed the Pairs
First make sure the assembly is safe: all cutters face the correct direction, the guards are undamaged and the retaining system is locked. If you can identify the original pairs from a photograph or position markers, restore them.
If the original pairing cannot be recovered, do not keep rearranging parts while the shaver is running. Philips notes that mismatched pairs may require time to settle, but persistent loud noise, pulling, heat or visible damage requires stopping and checking the manual or replacing the correct head set.
Cleaning Does Not Solve Every Performance Problem
Residue in the hair chamber and head assembly can cause missed hairs or longer sessions. After cleaning and drying, test the shaver fully charged. If performance remains poor, inspect for worn or damaged guards and cutters.
Do not replace an SH50 with SH71 merely because both are rotary heads. Our Philips replacement-head identification guide explains why the full S, SP, AT, PT, RQ or HQ handle model must be checked.
A Repeatable Maintenance Checklist
- Disconnect power before removing components.
- Use the instructions for the full handle model.
- Clean one cutter-and-guard pair at a time.
- Keep the sink drain closed.
- Use warm water when the official instructions permit it.
- Let parts air-dry.
- Lock every retaining ring or frame completely.
- Stop if the rebuilt head rattles, pulls hair or becomes hot.
- Record the current head code before purchasing replacements.
FAQ
Why must cutters and guards stay paired?
They form matching wear surfaces during use. Philips advises avoiding mix-ups because performance may take weeks to recover with mismatched pairs.
Can I clean all three cutters together in one cup?
That makes it easy to lose the original pairing. Remove, clean and reassemble one head at a time.
Should I dry rotary heads with a towel?
Air-drying is safer. Towel or tissue fibers can catch on cutting surfaces, and wiping adds unnecessary pressure.
Why is my shaver louder after cleaning?
A cutter may be upside down, a guard may not be seated or a retaining ring may be loose. Switch off the shaver and compare the assembly with the model instructions.
Can cleaning fix a bent guard?
No. Stop using damaged cutting components and match the genuine replacement family to the complete handle model.
